This example shows how to collect model metric data by using the Metrics Dashboard. From the dashboard, explore detailed compliance results and, fix compliance issues by using the Model Advisor.

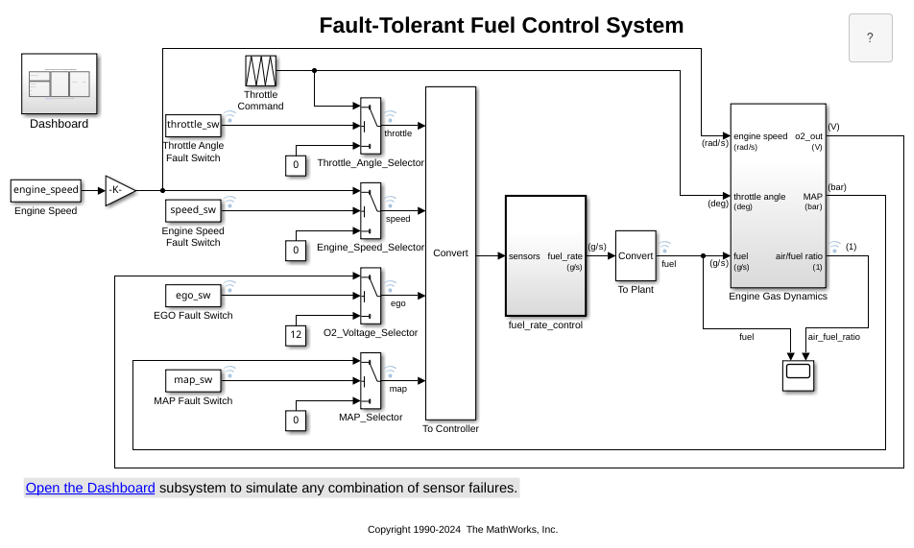

Open the example model
sldemo_fuelsys and save the model to a local folder.
In the model window, open the Metrics Dashboard by selecting Analysis > Metrics Dashboard.
To collect the metric data for this model, click the All Metrics icon.

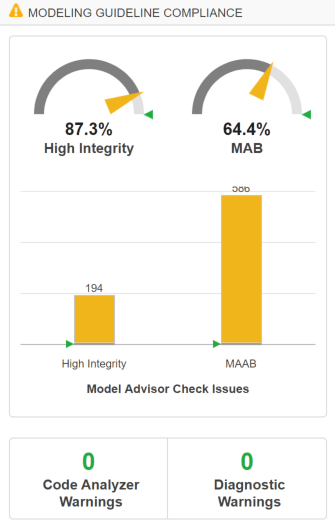

Locate the MODELING GUIDELINE COMPLIANCE section of the dashboard. This section displays the percentage of High Integrity and MAAB compliance checks that passed on all systems. The bars chart show the number of issues reported by the checks in the corresponding check group.
To see a table that details the number of compliance issues by component, click anywhere on the High Integrity bar chart. For compliance checks that analyze configuration settings, each check that does not pass adds 1 issue to the model on which it failed.
From the table, open the

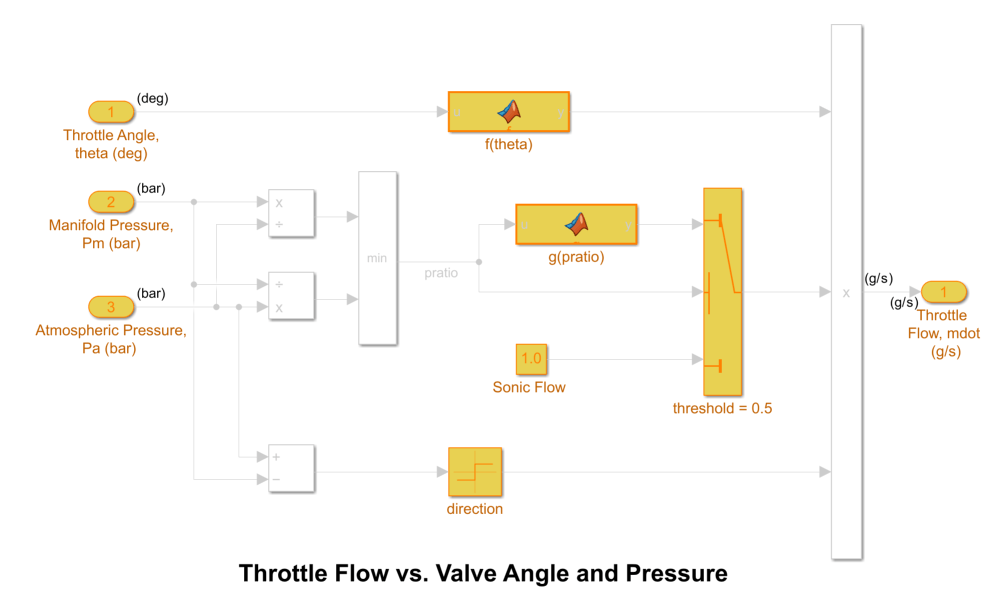

Throttle component in the model editor by clicking the component hyperlink in the table. The model editor highlights blocks in the component that have compliance issues.
In the Metrics Dashboard, return to the main dashboard page by clicking the Dashboard icon.
Click the High Integrity percentage gauge.
To see the status for each compliance check, click the Table view.
To explore check results in more detail, click the Check safety-related diagnostic settings for sample time hyperlink.
In the Model Advisor Highlight dialog box, click Check safety-related diagnostic settings for sample time hyperlink.
In the Model Advisor Report, the check results show the Current Value and Recommended Value of diagnostic parameters.
To change the Current Value to the Recommended Value, click the parameter. The Model Configuration Parameters dialog box opens.
Change the parameter settings.
Save your changes and close the dialog box.
Save the changes to the model.
Return to the Metrics Dashboard.
To recollect the model metrics, click the All Metrics icon.
To return to the main dashboard page, click the Dashboard icon.
Confirm that the number of High Integrity check issues is reduced and the compliance percentage is increased.
