To import data into the Simulation Data Inspector from a CSV file, format the data in the
CSV file. Then, you can import the data using the Simulation Data Inspector UI or the
When you want to import data from a CSV file where the data is formatted differently
from the specification in this topic, you can write your own file reader for the
Simulation Data Inspector using the
In the simplest format, the first row in the CSV file is a header that lists the names
of the signals in the file. The first column is time. The name for the time column must be
time, and the time values must increase monotonically. The rows below
the signal names list the signal values that correspond to each time step.
The import operation does not support time data that includes
NaN values or signal data that includes
NaN signal values render as missing data. All built-in data
types are supported.

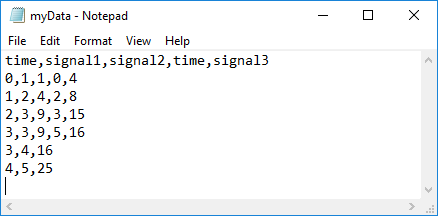

When your data includes signals with different time vectors, the file can include more
than one time vector. Every time column must be named
time. Time columns
specify the sample times for signals to the right, up to the next time vector. For example,
the first time column defines the time for
signal2, and the second time column defines the time steps for
Signal columns must have the same number of data points as the associated time vector.

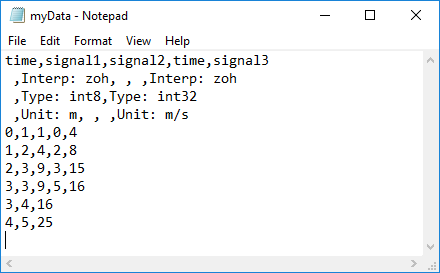

You can specify signal metadata in the CSV file to indicate the signal data type, units, interpolation method, block path, and port index. List metadata for each signal in rows between the signal name and the signal data. Label metadata according to this table.
|Data type||Built-in data type.|
Supported unit. For example,
For a list of supported units, enter
|Block Path||Path to the block that generated the signal.|
You can also import a signal with a data type defined by an enumeration class. Instead
of using the
Type: label, use the
Enum: label and
specify the value as the name of the enumeration class. The definition for the enumeration
class must be saved on the MATLAB path.
When an imported file does not specify signal metadata, the Simulation Data Inspector assumes double data type and linear interpolation. You can specify the interpolation method as linear, zoh (zero-order hold), or none. If you do not specify units for the signals in your file, you can assign units to the signals in the Simulation Data Inspector after you import the file.
You can specify any combination of metadata for each signal. Leave a blank cell for signals with less specified metadata.
You can import data from a CSV file using the Simulation Data Inspector UI or using the
To import data using the UI, open the Simulation Data Inspector using the
Simulink.sdi.view function or the Data Inspector button in the Simulink™ toolstrip. Then, click the Import button.
In the Import dialog, select the option to import data from a file and navigate in the file system to select the file. After you select the file, data available for import shows in the table. You can choose which signals to import and whether to import them to a new or existing run. This example imports all available signals to a new run. After selecting the options, click the Import button.
When you import data into a new run using the UI, the new run name includes the run number followed by
When you import data programmatically, you can specify the name of the imported run.
csvRunID = Simulink.sdi.createRun('CSV File Run','file','csvExampleData.csv');
