Algebraic Constraint

Constrain input signal

  • Library:
  • Simulink / Math Operations

  • Algebraic Constraint block

Description

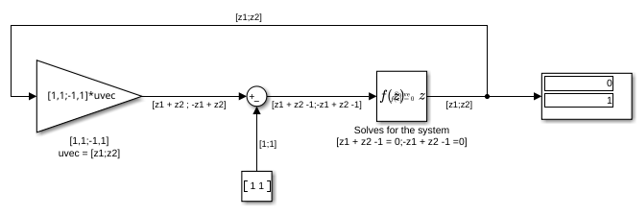

The Algebraic Constraint block constrains the input signal f(z) to z or 0 and outputs an algebraic state z. The block outputs a value that produces 0 or z at the input. The output must affect the input through a direct feedback path. In other words, the feedback path only contains blocks with direct feedthrough. For example, you can specify algebraic equations for index 1 differential-algebraic systems (DAEs).

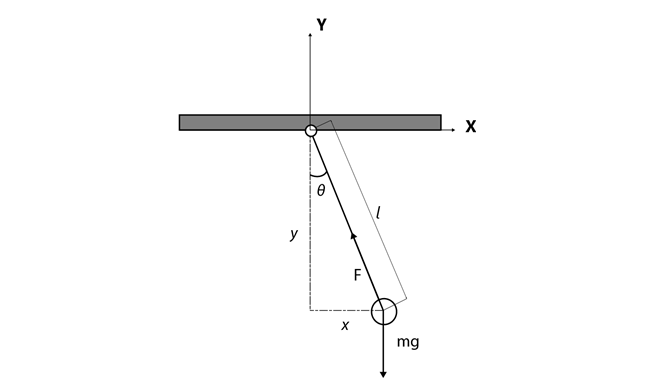

Ports

Input

expand all

Signal is subjected to the constraint f(z) = 0 or f(z) = z to solve the algebraic loop.

Data Types: double

Output

expand all

Solution to the algebraic loop when the input signal f(z) is subjected to the constraint f(z) = 0 or f(z) = z.

Data Types: double

Parameters

expand all

Type of constraint for which to solve. You can solve for f(z) = 0 or f(z) = z

Programmatic Use

Block Parameter: Constraint
Type: character vector
Values: 'f(z) = 0' | 'f(z) = z'
Default: 'f(z) = 0'

Choose between the Trust region [1], [2] or Line search [3] algorithms to solve the algebraic loop. By default this value is set to auto, which selects the solver based on the model configuration

Programmatic Use

Block Parameter: Solver
Type: character vector
Values: 'auto' | 'Trust region' | 'Line search'
Default: 'auto'

This option is visible when you explicitly specify a solver to be used (Trust region or Line Search) in the Solver dropdown menu. Specify a smaller value for higher accuracy or a larger value for faster execution. By default it is set to auto.

Programmatic Use

Block Parameter: Tolerance
Type: character vector
Values: 'auto' | positive scalar
Default: 'auto'

Initial guess for the algebraic state z that is close to the expected solution value to improve the efficiency of the algebraic loop solver. By default, this value is set to 0

Programmatic Use

Block Parameter: InitialGuess
Type: character vector
Values: scalar
Default: '0'

Block Characteristics

Data Types

double

Direct Feedthrough

no

Multidimensional Signals

no

Variable-Size Signals

no

Zero-Crossing Detection

no

References

[1] Garbow, B. S., K. E. Hillstrom, and J. J. Moré. User Guide for MINPACK-1. Argonne, IL: Argonne National Laboratory, 1980.

[2] Rabinowitz, P. H. Numerical Methods for Nonlinear Algebraic Equations. New York: Gordon and Breach, 1970.

[3] Kelley, C. T. Iterative Methods for Linear and Nonlinear Equations. Society for Industrial and Applied Mathematics, Philadelphia, PA: 1995.

Extended Capabilities

Introduced before R2006a
