IO Device Builder
Simulink® Support Package for Arduino® Hardware에 포함된 IO Device Builder 앱을 사용하면 사용자 지정 소스 파일 또는 타사 소스 파일(C/C++)을 위한 System object™를 빠르게 만들 수 있습니다. System object를 사용하면 MATLAB® System 블록을 사용하여 Simulink 블록을 만들 수 있습니다.
IO Device Builder 앱을 사용하려면 Simulink 툴스트립의 하드웨어 탭에서 준비 > 설계 > IO Device Builder로 이동하십시오. 그러면 일련의 지침이 표시되어 System object와 Simulink 블록을 만드는 과정을 안내합니다.
도움말 항목
- Get Started with IO Device Builder
Understand system requirements and work with IO Device Builder.
- Working with Arduino Libraries in IO Device Builder
Instructions to handle Arduino Libraries in IO Device Builder.
추천 예제
Create DHT11 Sensor Block to Measure Relative Humidity and Temperature Using IO Device Builder App
Use the IO Device Builder app to create DHT11 sensor for measuring relative humidity and temperature. In this example, the DHT11 sensor communicates with a microcontroller through a single-wire interface. The communication protocol is a proprietary one-wire protocol that uses a timing-based communication scheme. It detects water vapor by measuring the electrical resistance between two electrodes, and it measures temperature with a surface-mounted NTC temperature sensor (thermistor) built into the unit.

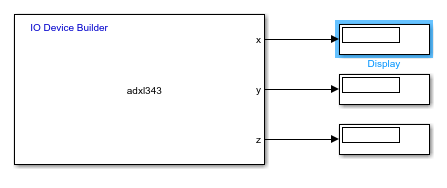

Create ADXL343 Sensor Block to Read Acceleration Using IO Device Builder App
Use the IO Device Builder app to create ADXL343 sensor to measure acceleration. In this example, the ADXL343 sensor values are retrieved by using the SPI bus requiring four wires (SCL, SDA, SDO and CS).

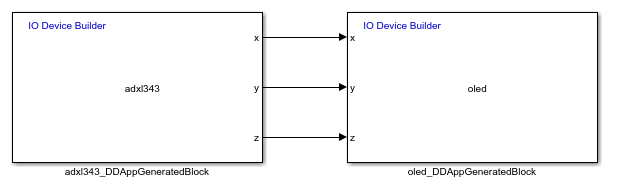

Create OLED Display Block to Display Acceleration Using IO Device Builder App
Use the IO Device Builder app to create ADXL343 sensor to measure acceleration and display the same in SH1106 OLED (Organic Light Emitting Diodes) display module.

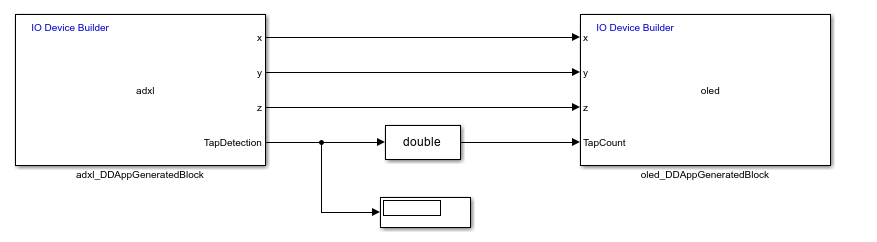

Create OLED Display Block to Display Acceleration and Tap Count Using IO Device Builder App
Use the IO Device Builder app to create OLED Display block to measure acceleration, tap count and then display the same in OLED (Organic Light Emitting Diodes) display module.
Create OLED Display Block to Display Acceleration and Tap Count Using Arduino External Interrupt Block and IO Device Builder App
Use the IO Device Builder app to create OLED Display block to display acceleration and tap count using Arduino External Interrupt block.
