위성 RF 신호 수신
R2026b다음과 같은 표준 기반 위성 신호에 대한 신호 복원 기능을 모델링합니다.
CCSDS(Consultative Committee for Space Data Systems) TC(Telecommand)
CCSDS TM(Telemetry)
Digital Video Broadcasting Satellite Second Generation (DVB-S2)
Digital Video Broadcasting Satellite Second Generation extended (DVB-S2X)
Digital Video Broadcasting Second Generation Return Channel over Satellite (DVB-RCS2)
표준 기반 파형의 신호 송신 측면을 살펴보려면 신호 송신 범주를 참조하십시오.
함수
추천 예제
DVB-S2 Link Simulation with RF Impairments and Corrections
Measure BER and PER for a pilot-aided DVB-S2 link with added RF impairments and AWGN.

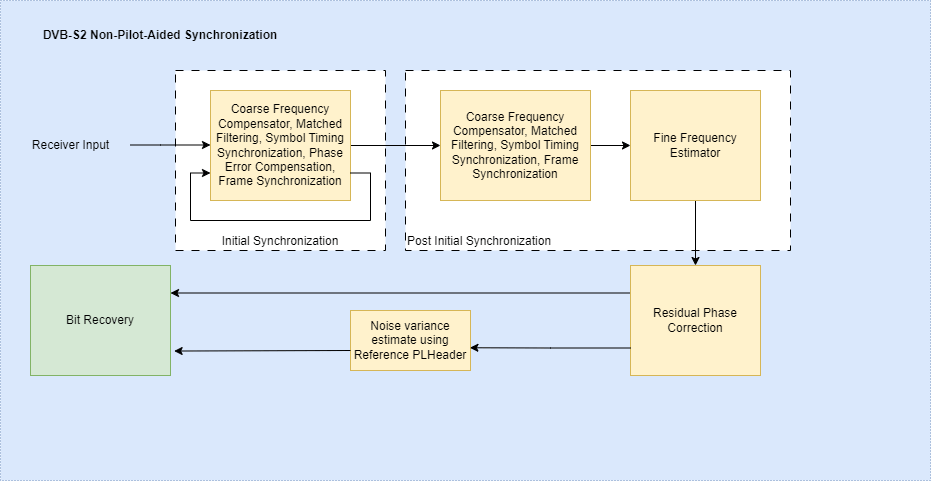

DVB-S2 Link Simulation with RF Impairments and Non-Pilot-Aided Corrections
Measure BER and PER for a non-pilot-aided DVB-S2 link with added RF impairments and AWGN.
DVB-S2X Link Simulation with RF Impairments and Corrections for Regular Frames
Measure BER and PER for a DVB-S2X link with regular frames, with added RF impairments and AWGN.

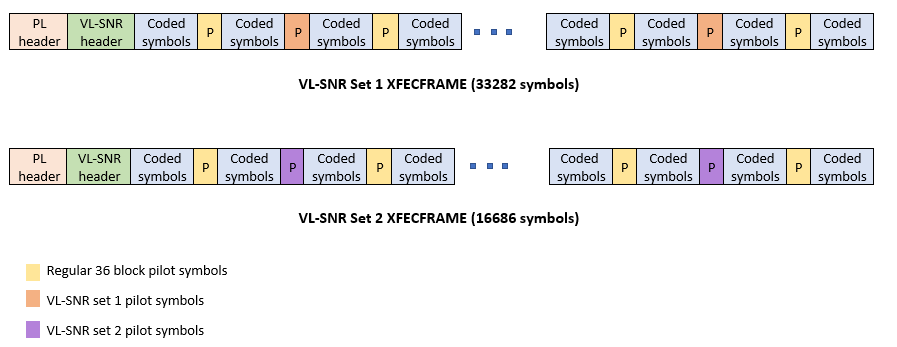

DVB-S2X Link Simulation with RF Impairments and Corrections for VL-SNR Frames
Measure BER and PER for a DVB-S2X link with VL-SNR frames, with added RF impairments and AWGN.
DVB-S2X Link Simulation with RF Impairments and Corrections in Wideband Mode
Measure BER and PER for a DVB-S2X link in wideband mode using time-slicing, with added impairments and AWGN.

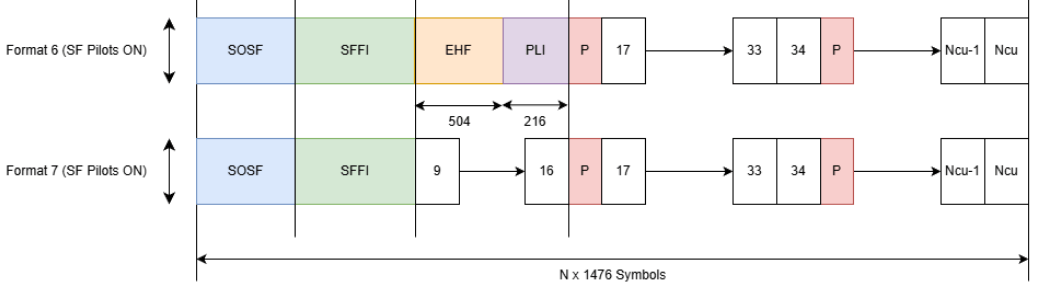

DVB-S2X Link Simulation with RF Impairments and Corrections for Super-Frame Formats 6 and 7
Generate and receive DVB-S2X Super-Frame format 6 and 7 waveforms.

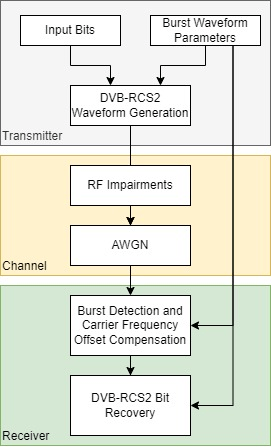

DVB-RCS2 Link Simulation with RF Impairments and Corrections for TC-LM and CC-CPM Bursts
Measure the packet error rate for a DVB-RCS2 link.
DVB-S2 Bent Pipe Simulation with RF Impairments and Corrections
Model a DVB-S2 bent pipe satellite link, and calculate the PER and LDPC coding BER.

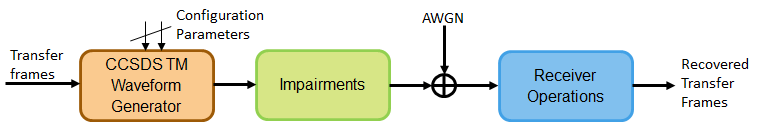

Link-Level CCSDS Telemetry Synchronization and Channel Coding Simulation with RF Impairments and Corrections
Measure BER for a CCSDS TM link with added RF impairments and AWGN.

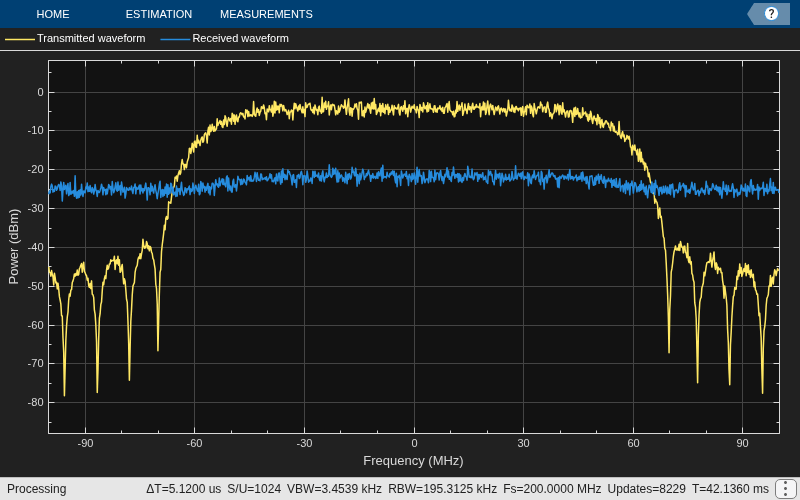

Link-Level CCSDS Flexible Advanced Coding and Modulation Simulation with RF Impairments and Corrections
Measure BER for a CCSDS FACM link with added RF impairments and AWGN.

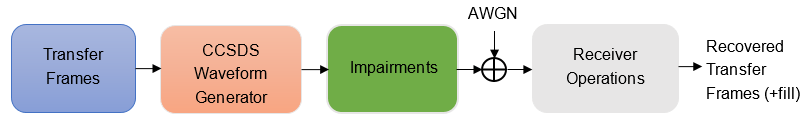

CCSDS Telecommand Link Simulation with RF Impairments and Corrections
Measure BER and CLTUs lost in a CCSDS TC link with added RF impairments and AWGN.
Link-Level QAM Simulation with RF Impairments and Corrections
Visualization capabilities that show the effects of RF impairments and corrections in a satellite downlink.
