Issues Detected Using Polyspace Test Code Sanitizer

When running C/C++ tests using Polyspace^® Test™, you can enable a code sanitizer to detect run-time errors during test execution. The code sanitizer detects a class of issues that can occur during test execution and reports them as test failures with detailed information about the issue instead of a generic run-time error.

This topic lists the issues that can be detected using the Polyspace Test code sanitizer. For more information on the code sanitizer workflow, see Run C/C++ Code Sanitizer and Review Results in Polyspace Platform User Interface.

Reporting of Issue Detected With Code Sanitizer

When test execution encounters an issue that is detectable using the code sanitizer, it is reported in the test results as a test failure, similar to test failures that occur because of failing assessments. This test failure is accompanied by additional details that provide more information about the issue.

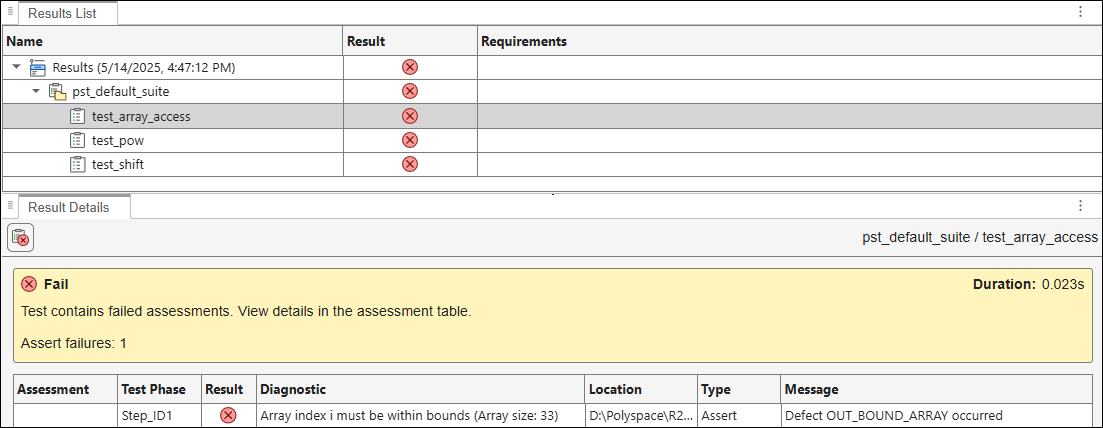

For instance, in this example, the test test_array_access failed because of an out-of-bounds array access. If you open the test results in the Polyspace Platform user interface and select this failing test on the Results List pane, the Result Details pane shows a failure that does not have an associated assessment. Instead the Message column shows the issue with this message:

Defect OUT_BOUND_ARRAY occurred

The Diagnostic column shows the check being violated during test execution.

In addition to test results, you can also see the errors in a sanitizer profiling report. For more information on the sanitizer profiling report, see Structure of HTML Reports Generated from C/C++ Code Sanitizer Results.

Issues Detectable With Code Sanitizer

The tables below list issues that the code sanitizer can detect along with the issue acronym reported in the test failure messages.

Numerical Issues

Issue	Acronym	Description
Bitwise operation on negative value	BITWISE_NEG	The left operand of a right shift operator >> has a negative value.
Shift operator on negative value	SHIFT_NEG	The left operand of a left shift operator << has a negative value.
Result of shift operation outside allowed bounds	SHIFT_OVFL	A shift operation results in a value outside the range of the result data type.
Sign change integer conversion overflow	SIGN_CHANGE	A conversion between unsigned and signed integers results in a value outside the range of the result data type.
Integer overflow	INT_OVFL	An operation between two signed integer values results in a value outside the range of the operation data type. The data type of a binary operation is determined by the data types of the operands and integer promotion rules.
Integer conversion overflow	INT_CONV_OVFL	A conversion between two signed integers results in a value outside the range of the result data type.
Unsigned integer overflow	UINT_OVFL	An operation between two unsigned integer values results in a value outside the range of the operation data type. The data type of a binary operation is determined by the data types of the operands and integer promotion rules.
Unsigned integer conversion overflow	UINT_CONV_OVFL	A conversion between two unsigned integers results in a value outside the range of the result data type.
Integer division by zero	INT_ZERO_DIV	The integer denominator of a division or modulus operation is zero.
Float overflow	FLOAT_OVFL	An operation between two floating-point values results in a value outside the range of the operation data type. The data type of a binary operation is determined by the data types of the operands and floating-point promotion rules.
Float conversion overflow	FLOAT_CONV_OVFL	A conversion between two floating-point values results in a value outside the range of the result data type.
Float to integer conversion overflow	FLOAT_TO_INT_CONV_OVFL	A conversion between a floating-point value and a signed integer results in a value outside the range of the result data type.
Float to unsigned integer conversion overflow	FLOAT_TO_UINT_CONV_OVFL	A conversion between a floating-point value and an unsigned integer results in a value outside the range of the result data type.
Float division by zero	FLOAT_ZERO_DIV	The floating-point denominator of a division or modulus operation is zero.
Invalid use of integer standard library routine	INT_STD_LIB	A standard library function that takes an integer argument is passed a value outside the function's domain.
Invalid use of floating-point standard library routine	FLOAT_STD_LIB	A standard library function that takes a floating-point argument is passed a value outside the function's domain.

Memory Management Issues

Issue	Acronym	Description
Invalid use of memory standard library routine	MEM_STD_LIB	A memory manipulation function is called with invalid arguments.
Null pointer dereference	NULL_PTR	A null pointer (or result of null pointer arithmetic) is dereferenced.
Null pointer arithmetic	NULL_PTR_ARITH	An arithmetic operation is performed on a null pointer.
Pointer access out of bounds	OUT_BOUND_PTR	A pointer is dereferenced outside its allowed bounds.
Array access out of bounds	OUT_BOUND_ARRAY	An array is accessed outside its allowed bounds.
Use of automatic variable as putenv-family function argument	PUTENV_AUTO_VAR	The argument to a putenv-family function is a local variable (with automatic duration).
Invalid free of pointer	BAD_FREE	Pointer used with free function: Points to an object on stack. Points to memory that was not previously allocated with malloc, calloc, or realloc Points to an intermediate location in a dynamically allocated block of memory instead of at the beginning.
Invalid deletion of pointer	BAD_DELETE	Pointer used with delete or delete[] operator: Points to an object on stack. Points to memory that was not previously allocated with new (corresponding to delete) or new with array notation (corresponding to delete[]). Points to an intermediate location in a dynamically allocated block of memory instead of at the beginning.
Dereference of freed pointer	FREED_PTR	Dereference of pointer that points to previously freed memory location.
Deallocation of previously deallocated pointer	DOUBLE_DEALLOCATION	Pointer used with free function, or delete or delete[] operator points to memory that was already released previously.
