Generate C/C++ Tests to Diagnose or Guard Against Input Related Defects

Polyspace^® Bug Finder™ can find defects in C/C++ code originating from system inputs to a function. For this class of defects, Bug Finder can show one set of example input values causing the defect. You can then use Polyspace Test™ to generate C/C++ tests from the example input values, and run these tests in debug mode to understand how the input values lead to the defect or retain these tests in your project as non-regression tests against further recurrence of the defect (static-analysis-guided test generation).

This topic shows how to generate test cases from Polyspace Bug Finder results.

Example Files

This tutorial uses the files in the folder polyspaceroot\polyspace\examples\doc_pstest\defect_tests\src. Here, polyspaceroot is the Polyspace installation folder, for instance, C:\Program Files\Polyspace\R2026a. To continue with this tutorial:

Create a new Polyspace Platform project and add the folder to the project. Save the project with the name defect_Tests.
Select Parse Code on the toolstrip to analyze the files in the folder.

The source file example.c in the folder defines a function getRatio() with a division operation that is not protected against a division by zero. A second function checkRatio() calls getRatio() with inputs that do not preempt a possible division by zero in getRatio().

#include "decls.h"
double getRatio(double x, double y, int32_t z) {
    if  ((y > -100 && y < 100) && (z > 0 && z < 100))
    {
        return x/(y + z);
    } else {
        return 0;
    }
}

bool checkRatio(double x, int32_t y, int32_t z) {
    double ratio = 0.0;
    if (x > 0 && x < 1)  {
        ratio = getRatio(x, y / 10, z);
    }
    if (ratio < 0.5) {
        return 0;
    }
    return 1;
}

Run Bug Finder

Run Polyspace Bug Finder on the example considering all values of system inputs.

Open the project configuration. On the Static Analysis tab, select Defects and Coding Standards > Checkers Behavior. Set these options:
- Select Run stricter checks considering all values of system inputs.
- Select custom for the option Consider inputs to these functions and enter checkRatio.
These options ensure that the function checkRatio() is analyzed for all values of function inputs. Any defect that occurs is shown along with a set of input values leading to the defect (counterexample).
On the Polyspace Platform toolstrip, select Find Issues to start a Polyspace Bug Finder analysis.
Once the analysis is completed, the Results pane on the lower left contains an Issues node. Right-click this node and select Open Review to open the list of Polyspace Bug Finder results. You see the following:
- The Results List pane shows a Float division by zero defect.
- If you select this defect, the Result Details pane shows one possible set of input values to the function getRatio() that lead to the defect.

Generate Test

Generate a test from the defect that Polyspace Bug Finder detected in the previous section.

If you are reviewing results, on the Polyspace Platform toolstrip, select Project to return to the project perspective.

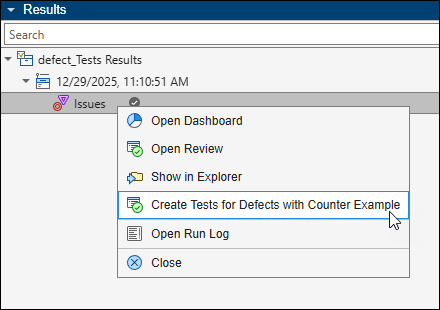

On the Results pane, right-click the Issues node corresponding to the Bug Finder run and select Create Tests for Defects with Counter Examples.
Once the test generation is completed, on the Projects pane, you see a test below the Tests node of your project. The test is named starting with Bug Finder Test to indicate that the test was generated from a Bug Finder result.
Double-click the test to see the test details:
- The Description field in the test shows the file, function, line and column number of the defect along with the defect acronym.
- The Step Body of the test contains a script that calls the function checkRatio() with values that lead to the defect. For more information on scripted tests, see Test C/C++ Functions by Using Scripts in Graphical Tests.

Run Test and Review Results

Run the test generated in the previous step to see failing test results.

On the Projects pane, right-click the generated test and select Build Test.
Once the build is completed, right-click the test again and select Run Test.
Once the run is completed, the Results pane shows a Tests node with a failed status corresponding to this run. Right-click this node and select Open Review.
On the Results List pane, select the test name. The Result Details pane shows a message indicating that the test failed because a defect has occurred.

If you have a supported debugger installed, you can also build the test in debug mode. You can then run the test to open the source file in your debugger, place breakpoints, and see run-time values leading to the defect. For more information on running tests in debug mode, see Debug Test Failures from Polyspace Platform User Interface.

Once you fix the defect, you can rebuild the project and rerun the test to see passing test results.

Generate Test on Command Line

You can also generate tests based on Bug Finder results and add them to a Polyspace Platform project at the command line.

To generate a Bug Finder launching script using the above project, open a terminal, navigate to the folder containing the project file defect_Tests.psprjx, and run the following command:
```
polyspace-project -generate-launching-script-for defect_Tests.psprjx -output-dir scripts -product bug-finder
```
This command generates a script to run Bug Finder in the scripts subfolder. Open the file options_command.txt in the scripts subfolder and note the options that will be used in a Bug Finder analysis. In particular, note these command-line options that you previously set in the Polyspace Platform user interface:
```
-checks-using-system-input-values
-system-inputs-from custom=checkRatio
```
Navigate to the scripts subfolder and launch the script to run a Bug Finder analysis at the command line. For instance, on Windows^®, you can launch the generated script launchingCommand.bat as follows:
```
cd scripts
.\launchingCommand.bat
```
The script runs Bug Finder on the sources in the file source_command.txt using the options in the file options_command.txt and generates results in a file ps_results.psbf in a results subfolder.
To generate non-regression tests from the defects in the file results\ps_results.psbf and add them to the project, enter the following:
```
polyspace-test -create-defect-tests -project ..\defect_Tests.psprjx -results-file results\ps_results.psbf
```

Limitations

Tests generated from Bug Finder defects are not supported for execution or stack profiling.
