show

System object: phased.IntensityScope
Namespace: phased

Show intensity scope window

expand all in page

Syntax

show(sIS)

Description

show(sIS) shows the display window of the phased.IntensityScope object, sIS.

Input Arguments

expand all

Intensity scope, specified as a phased.IntensityScope System object.

Example: phased.IntensityScope

Examples

expand all

Open Script

Create an angle-time-intensity scope. Use the phased.IntensityScope System object™ to display simulated intensity as a function of the angular motion of a moving target. After five steps in the processing loop, use the hide method to hide the scope. At completion of the loop, use the show method to show the scope.

Simulate data for 5 seconds with a time interval of 0.5 seconds between scan lines.

nsteps = 10;
dt = 0.5;
timespan = nsteps*dt;

Set Up IntensityScope System Object

Create an angle-time-intensity scope having azimuth angle bins spanning −180° to 180° with 1° resolution.

scanline = zeros(361,1);
angres = 1.0;
angmin = -180.0;
angmax = 180.0;
rtidisplay = phased.IntensityScope( ...
    'Name','IntensityScope Display',...
    'Title','Azimuth vs. Time',...
    'XLabel','Azimuth (deg)', ...
    'XResolution',angres,'XOffset',angmin,...
    'TimeResolution',dt,'TimeSpan',timespan, ...
    'IntensityUnits','Watts',...
    'Position',[100,100,800,450]);

Loop Over Scan Updates

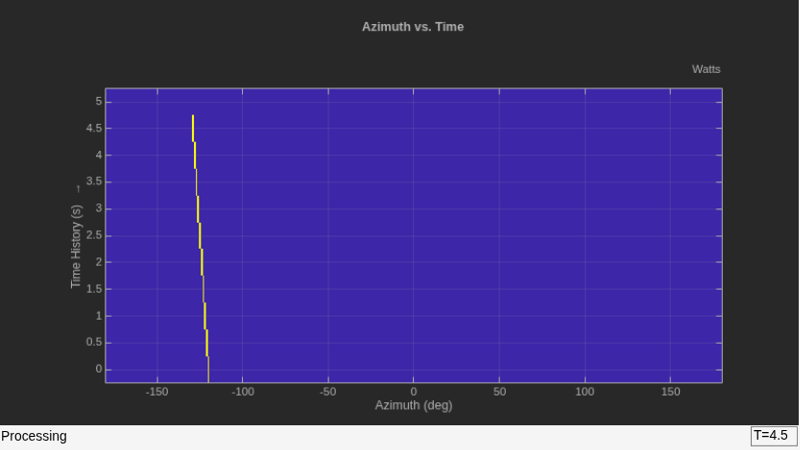

Simulate angular motion and fill the bin containing the current angular position of the signal. Hide the scope after the 5th step and show the scope at the end of the simulation.

for k = 1:nsteps
    ang = -130.0 + k;
    binindexdx = floor((ang - angmin)/angres) + 1;
    scanline(binindexdx) = 1;
    rtidisplay(scanline);
    scanline(binindexdx) = 0;
    if k == 5
        hide(rtidisplay)
    end
    pause(.1);
end
show(rtidisplay)

Version History

Introduced in R2016a
