# Grouped Statistics Calculations with Tall Arrays

This example shows how to calculate grouped statistics of a tall timetable containing power outage data. The example uses the `grouptransform`, `groupsummary`, and `groupcounts` functions to calculate various quantities of interest, such as the most common power outage cause in each region. Even though the raw data in this example only has about 1500 rows, you can use the techniques presented here on much larger data sets because no assumptions are made about the size of the data.

### Create Datastore and Tall Timetable

The sample file, `outages.csv`, contains data representing electric utility outages in the United States. The file contains six columns: `Region`, `OutageTime`, `Loss`, `Customers`, `RestorationTime`, and `Cause`.

Create a datastore for the `outages.csv` file. Use the `"TextScanFormats"` option to specify the kind of data each column contains: categorical (`"%C"`), floating-point numeric (`"%f"`), or datetime (`"%D"`).

```data_formats = ["%C","%D","%f","%f","%D","%C"]; ds = tabularTextDatastore("outages.csv","TextscanFormats",data_formats);```

Create a tall table on top of the datastore, and convert the tall table into a tall timetable. The `OutageTime` variable is used for the row times since it is the first datetime or duration variable in the table.

```T = tall(ds); T = table2timetable(T)```
```T = Mx5 tall timetable OutageTime Region Loss Customers RestorationTime Cause __________ ______ ____ _________ _______________ _____ ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? : : : : : : : : : : : : ```

### Replace Missing Data

Some of the rows in the `RestorationTime` variable have missing times, represented by `NaT` values. Remove these rows from the table.

`T = rmmissing(T,"DataVariables","RestorationTime");`

For the numeric variables in the timetable, instead of removing rows with missing values, replace the missing values with the mean value for each region.

`T = grouptransform(T,"Region","meanfill",["Loss","Customers"]);`

Use `ismissing` to confirm that no pieces of missing data remain in the table.

```tf = any(ismissing(T),"all"); gather(tf)```
```Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 4: Completed in 0.23 sec - Pass 2 of 4: Completed in 0.62 sec - Pass 3 of 4: Completed in 0.5 sec - Pass 4 of 4: Completed in 0.4 sec Evaluation completed in 2.7 sec ```
```ans = logical 0 ```

### Preview Data

Now that the data does not contain missing values, bring a small number of rows into memory to get an idea of what the data contains.

`gather(head(T))`
```Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 1: Completed in 0.28 sec Evaluation completed in 0.5 sec ```
```ans=8×5 timetable OutageTime Region Loss Customers RestorationTime Cause ________________ _________ ______ __________ ________________ _______________ 2002-02-01 12:18 SouthWest 458.98 1.8202e+06 2002-02-07 16:50 winter storm 2003-02-07 21:15 SouthEast 289.4 1.4294e+05 2003-02-17 08:14 winter storm 2004-04-06 05:44 West 434.81 3.4037e+05 2004-04-06 06:10 equipment fault 2002-03-16 06:18 MidWest 186.44 2.1275e+05 2002-03-18 23:23 severe storm 2003-06-18 02:49 West 0 0 2003-06-18 10:54 attack 2004-06-20 14:39 West 231.29 1.5354e+05 2004-06-20 19:16 equipment fault 2002-06-06 19:28 West 311.86 1.5354e+05 2002-06-07 00:51 equipment fault 2003-07-16 16:23 NorthEast 239.93 49434 2003-07-17 01:12 fire ```

### Mean Power Outage Duration by Region

Determine the mean power outage duration in each region using `groupsummary`. First, create a new variable `OutageDuration` in the table that contains the duration of each outage, found by subtracting the outage time from the restoration time. In the call to `groupsummary`, specify:

• `"Region"` as the grouping variable

• `"mean"` as the computation method

• `"OutageDuration"` as the variable to operate on.

```T.OutageDuration = T.RestorationTime - T.OutageTime; times = groupsummary(T,"Region","mean","OutageDuration")```
```times = Mx3 tall table Region GroupCount mean_OutageDuration ______ __________ ___________________ ? ? ? ? ? ? ? ? ? : : : : : : ```

Change the display format of the duration results to be in days, and gather the results into memory. The results show the mean outage duration in each region, as well as the number of reported outages in each region.

```times.mean_OutageDuration.Format = "d"; times = gather(times)```
```Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 2: Completed in 0.91 sec - Pass 2 of 2: Completed in 0.51 sec Evaluation completed in 1.9 sec ```
```times=5×3 table Region GroupCount mean_OutageDuration _________ __________ ___________________ MidWest 138 34.135 days NorthEast 548 24.21 days SouthEast 379 1.7013 days SouthWest 25 2.4799 days West 349 28.061 days ```

### Most Common Power Outage Causes by Region

Determine how often each power outage cause occurs in each region. Use `groupcounts` with the `Cause` and `Region` variables as grouping variables. Gather the results into memory.

```causes = groupcounts(T,["Cause","Region"]); causes = gather(causes)```
```Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 2: Completed in 0.18 sec - Pass 2 of 2: Completed in 0.37 sec Evaluation completed in 0.82 sec ```
```causes=43×4 table Cause Region GroupCount Percent ________________ _________ __________ ________ attack MidWest 12 0.83391 attack NorthEast 135 9.3815 attack SouthEast 19 1.3204 attack West 126 8.7561 earthquake NorthEast 1 0.069493 earthquake West 1 0.069493 energy emergency MidWest 19 1.3204 energy emergency NorthEast 29 2.0153 energy emergency SouthEast 79 5.4899 energy emergency SouthWest 7 0.48645 energy emergency West 46 3.1967 equipment fault MidWest 9 0.62543 equipment fault NorthEast 17 1.1814 equipment fault SouthEast 40 2.7797 equipment fault SouthWest 2 0.13899 equipment fault West 85 5.9069 ⋮ ```

Each cause occurs several times in the table, so even though the table contains the correct data it is not in the proper format to see how often each cause occurs in each region. To improve the presentation of the data, unstack the `GroupCount` variable so that each column corresponds to a region and each row corresponds to an outage cause.

`RegionCauses = gather(unstack(causes,"GroupCount","Region","GroupingVariables","Cause"))`
```RegionCauses=10×6 table Cause MidWest NorthEast SouthEast SouthWest West ________________ _______ _________ _________ _________ ____ attack 12 135 19 NaN 126 earthquake NaN 1 NaN NaN 1 energy emergency 19 29 79 7 46 equipment fault 9 17 40 2 85 fire NaN 5 3 NaN 17 severe storm 30 139 132 6 22 thunder storm 31 102 54 6 7 unknown 4 10 3 NaN 4 wind 16 40 13 3 22 winter storm 17 70 36 1 19 ```

Not all combinations of outage causes and regions are represented in the data, so the resulting table contains some `NaN`s. Fill in the `NaN` values with zeros.

`RegionCauses = fillmissing(RegionCauses,"constant",{"",0,0,0,0,0})`
```RegionCauses=10×6 table Cause MidWest NorthEast SouthEast SouthWest West ________________ _______ _________ _________ _________ ____ attack 12 135 19 0 126 earthquake 0 1 0 0 1 energy emergency 19 29 79 7 46 equipment fault 9 17 40 2 85 fire 0 5 3 0 17 severe storm 30 139 132 6 22 thunder storm 31 102 54 6 7 unknown 4 10 3 0 4 wind 16 40 13 3 22 winter storm 17 70 36 1 19 ```

### Worst Power Outages in Each Region

Calculate the broadest customer impact for each power outage in each region.

```WorstOutages = groupsummary(T,["Region","Cause"],"max","Customers"); WorstOutages = gather(WorstOutages)```
```Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 2: Completed in 0.17 sec - Pass 2 of 2: Completed in 0.34 sec Evaluation completed in 0.73 sec ```
```WorstOutages=43×4 table Region Cause GroupCount max_Customers _________ ________________ __________ _____________ MidWest attack 12 2.4403e+05 MidWest energy emergency 19 5.0376e+05 MidWest equipment fault 9 2.4403e+05 MidWest severe storm 30 3.972e+06 MidWest thunder storm 31 3.8233e+05 MidWest unknown 4 3.0879e+06 MidWest wind 16 2.8666e+05 MidWest winter storm 17 7.7697e+05 NorthEast attack 135 1.5005e+05 NorthEast earthquake 1 0 NorthEast energy emergency 29 1.5005e+05 NorthEast equipment fault 17 1.667e+05 NorthEast fire 5 4.5139e+05 NorthEast severe storm 139 1.0735e+06 NorthEast thunder storm 102 5.9689e+06 NorthEast unknown 10 2.4983e+06 ⋮ ```

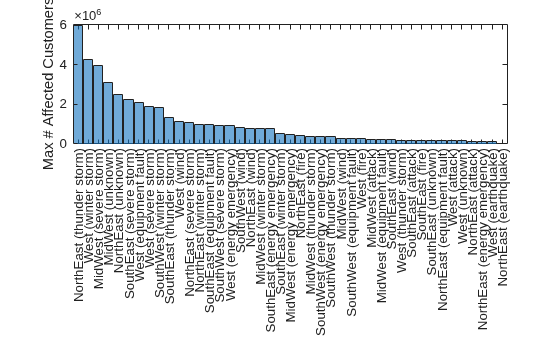

Combine the data in the `Region` and `Cause` variables into a single categorical variable by briefly converting them into strings. Then, create a categorical histogram of the maximum number of affected customers for each cause in each region.

```WorstOutages.RegionCause = categorical(string(WorstOutages.Region)+" ("+string(WorstOutages.Cause)+")"); histogram("Categories",WorstOutages.RegionCause,"BinCounts",WorstOutages.max_Customers,... "DisplayOrder","descend") ylabel("Max # Affected Customers")```
