Open HDL Code Advisor
hdlcodeadvisor(subsystem)
hdlcodeadvisor(model)
hdlcodeadvisor(subsystem) opens the HDL Code Advisor for the subsystem within the model.
subsystem
hdlcodeadvisor(model) opens the HDL Code Advisor for the model.
model
collapse all

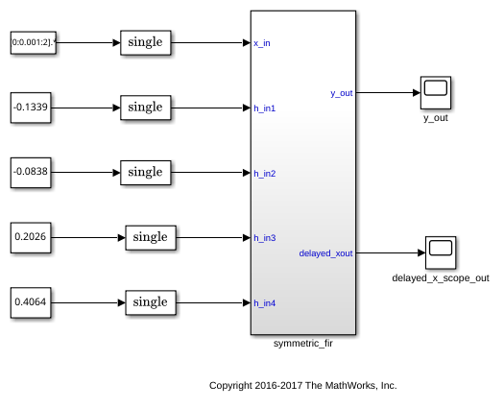

This example shows how to open the HDL Code Advisor for the sfir_single model.
sfir_single

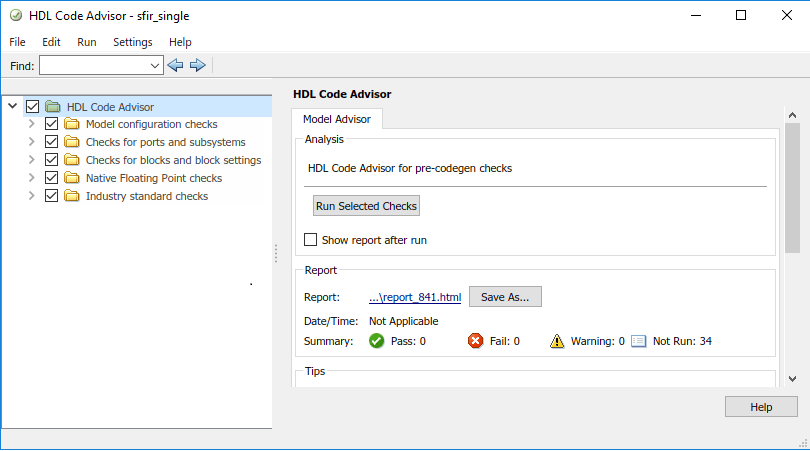

To open the HDL Code Advisor for the sfir_single model, enter:
hdlcodeadvisor('sfir_single')
This example shows how to open the HDL Model Checker for the symmetric fir subsystem within the sfir_single model.
symmetric fir
To open the HDL Model Checker for the Symmetric fir subsystem, enter:
Symmetric fir
hdlcodeadvisor('sfir_single/symmetric_fir')
Subsystem name or handle, specified as a character vector.
Data Types: char
char
Model name or handle, specified as a character vector.
Introduced in R2017b
