MCAL SPI

R2026b

Write data to and read data from an SPI peripheral device

Since R2026b

•

MCAL SPI block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Embedded Coder Support Package for Renesas RH850 Microcontrollers / Microcontroller Abstraction Layer (MCAL) Blocks

Description

Use the MCAL SPI block to write data to, read data from, or exchange data with an SPI peripheral device using the AUTOSAR MCAL SPI block. An SPI sequence is an ordered collection of jobs that the block triggers as a single transmission unit.

The block supports three transfer modes: Transmit, Receive, and Transmit and Receive. In all modes, the block triggers SPI communication at the Sequence level using Spi_SyncTransmit. When the transfer mode includes a receive operation, the block output per channel is a 1-by-N row vector, where N is the buffer size configured for that channel.

The SPI channel source can be configured in two ways: by selecting a predefined sequence from the Configuration Definition File (CDF), or by specifying channels manually.

• Sequence from CDF — Click Get SPI sequences to choose a sequence from the CDF. The Channels table is automatically populated with the channel name, type, data width, and buffer size defined in the CDF, and becomes read-only.

• Manually specified sequence — Enter the sequence name directly in the SPI Sequence field, then use the Add Channel and Delete Channel buttons to define the channels in the Channels table.

  Note

  For Manually specified sequence, the sequence name and channel configuration in the block must match the sequence and channels defined in the Configuration Description File (CDF). If the specified sequence is not present in the CDF, the block supports code generation only.

The following features are not supported:

• Asynchronous SPI transmission (Spi_AsyncTransmit)

• Interrupt-driven mode

• Polling mode (Spi_MainFunction_Handling)

• EB (External Buffer) channel type

• SPI slave mode

Before using this block, configure SPI sequences, jobs, channels, and external devices in the AUTOSAR MCAL configuration, select the Configuration Description File (CDF) in the Simulink model configuration, and then integrate the block into your target-specific model for code generation and deployment. For information on configuring the AUTOSAR MCAL SPI module hierarchy using Vector DaVinci Configurator, see Configure MCAL SPI in DaVinci Configurator.

Examples

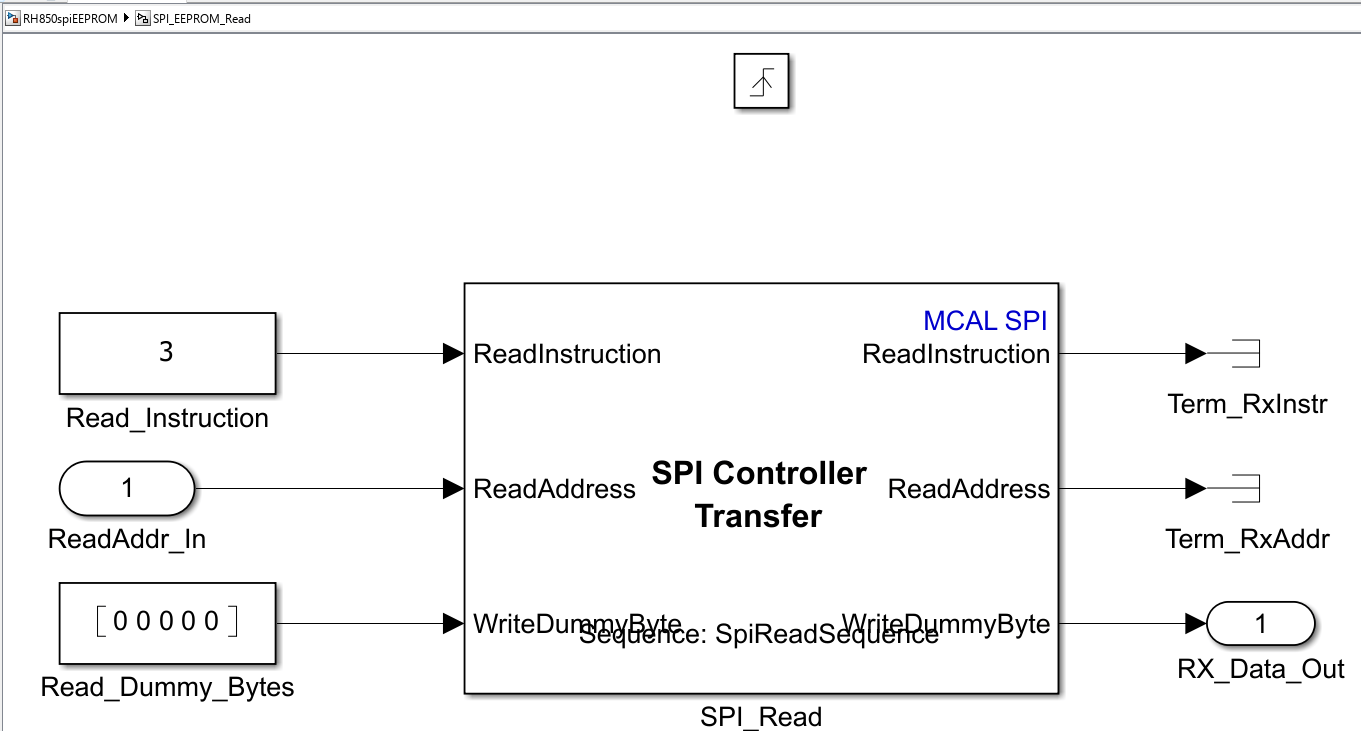

Read and Write EEPROM Using SPI Blocks on Renesas RH850 Microcontrollers

Read from and write to an SPI-based EEPROM (Microchip 25AA080) using the AUTOSAR MCAL SPI block on Renesas RH850 U2A microcontrollers in Simulink.

• Open Live Script

Ports

Input

Channel N — Data to transmit to SPI peripheral

vector

Data to transmit to the SPI peripheral for channel N. The input port name matches the Channel ID defined in the Channels table. The block creates one input port per channel in the sequence. Each input port accepts an array whose length and data type match the buffer size and data width configured for that channel in the CDF.

The input port data type depends on the Data Width configured for the channel in the CDF. A Data Width of 2–8 bits uses uint8, 9–16 bits uses uint16, and 17–32 bits uses uint32.

Dependencies

To enable this input port, set Transfer mode to Transmit or Transmit and Receive.

Data Types: uint8 | uint16 | uint32

Output

Channel N — Data received from SPI peripheral

vector

Data received from the SPI peripheral for channel N. The output port name matches the Channel ID defined in the Channels table. The block creates one output port per channel in the sequence. Each output port emits an array whose length and data type match the buffer size and data width configured for that channel in the CDF.

The output port data type depends on the Data Width configured for the channel in the CDF. A Data Width of 2–8 bits uses uint8, 9–16 bits uses uint16, and 17–32 bits uses uint32.

Dependencies

To enable this output port, set Transfer mode to Receive or Transmit and Receive.

Data Types: uint8 | uint16 | uint32

Status — Status of SPI transmission

scalar

Outputs the status of the SPI synchronous transmit operation. The block outputs the following status:

• 0 — Transmission completed successfully.

• 1 — Transmission failed.

Dependencies

To enable this port, select the Enable output status parameter.

Data Types: uint8

Parameters

Channel is input from — Source of SPI channel configuration

sequence from CDF (default) | manually specified sequence

Select the source for SPI channel configuration.

• sequence from CDF — The block retrieves SPI sequence and channel configuration from the Configuration Definition File (CDF). Click Get SPI sequences to select a sequence and its corresponding channels from the CDF. The Add Channel and Delete Channel buttons are disabled in this mode.

• manually specified sequence — Manually add the channels for the sequence in the Channels table. The Add Channel and Delete Channel buttons are enabled, allowing you to add or remove channels.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	sequenceselection
Values:	character vector
Data Types:	char

SPI Sequence — SPI sequence to use for communication

SpiSequence (default)

Specify the name of the SPI sequence as configured in the CDF file. The block uses this sequence name to construct the SPI sequence for invoking the MCAL SPI driver APIs.

If the Channel is input from parameter is set to sequence from CDF and the Configuration Definition File (CDF) is added to the model, click Get SPI sequences to retrieve and select from available SPI sequences configured in the CDF.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	SPIModule
Values:	character vector
Data Types:	char

Transfer mode — Direction of SPI data transfer

Transmit and Receive (default) | Transmit | Receive

Select the direction of SPI data transfer.

• Transmit and Receive — The block transmits data to and receives data from the SPI peripheral device. Input ports accept transmit data and output ports emit received data for each configured channel.

• Transmit — The block transmits data to the SPI peripheral device. Only input ports are enabled for each configured channel.

• Receive — The block receives data from the SPI peripheral device. Only output ports are enabled for each configured channel.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	TransferMode
Values:	character vector
Data Types:	char

Enable output status — Enable output status port

on (default) | off

When you select this parameter, the block enables the Status output port.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	OutputStatus
Values:	character vector
Data Types:	char

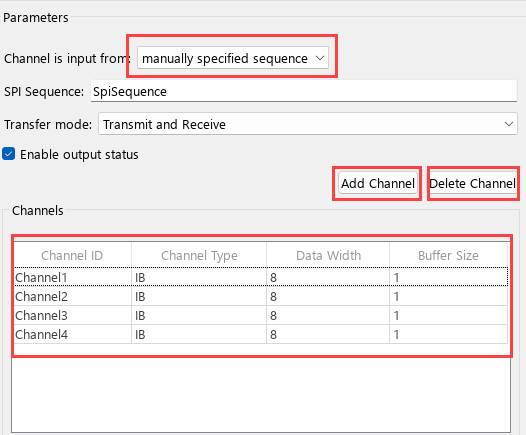

Channels — Table of SPI channels in the sequence

table

Displays the SPI channels configured for the selected sequence. Each row in the table represents one channel with the following properties:

• Channel ID — Name of the SPI channel.

• Channel Type — Buffer type of the channel (for example, IB for Internal Buffer).

• Data Width — Number of bits per data element for the channel.

• Buffer Size — Number of data elements in the channel buffer.

Use Add Channel to add a new channel row to the table, and Delete Channel to remove the selected channel row.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	ChannelsTable
Values:	character vector
Data Types:	char

Dependencies

When Channel is input from is set to sequence from CDF, the table is read-only; click Get SPI sequences, select a sequence, and the table is populated with the corresponding channels. The Add Channel and Delete Channel buttons are disabled in this mode. When set to manually specified sequence, the table is editable and the buttons are enabled.

Sample time — Frequency at which block executes SPI transfer

-1 (default) | positive scalar

Specify how often (in seconds) the block executes the SPI transfer. Enter a value greater than zero. When you specify this parameter as -1, Simulink^® determines the best sample time for the block based on the block context within the model.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	SampleTime
Values:	-1 (default) | positive scalar
Data Types:	double

Version History

Introduced in R2026b
