CAN Channel

R2026b

Specify the vendor-specific CAN channel

Since R2026b

Model Configuration Pane: Hardware Implementation / Hardware board settings / Target hardware resources / Connectivity

Description

Specify the vendor-specific CAN channel used for universal measurement and calibration protocol (XCP)-based external mode simulation over CAN.

Dependencies

To enable this parameter, set Communication interface to CAN and Connectivity interface parameter to CAN (MCANx). The value of x depends on the Device Series parameter value.

Settings


               <empty>

(default) | options vary depending on the CAN interface device connected

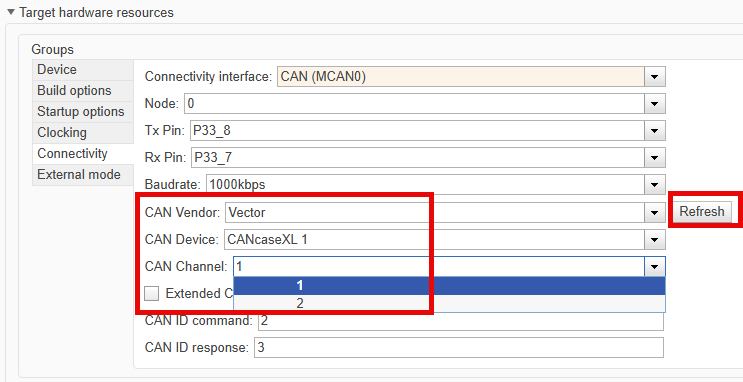

Choose the CAN channel after connecting the CAN interface device to the hardware board. For example, the screenshot shows the configuration settings for Vector CAN interface device.

Select vendor specific CAN parameters in configuration parameters window

Tips

If the expected CAN channel does not appear in the list, ensure that the CAN interface device is properly connected to the hardware board and click Refresh button to update the available CAN channel options.

Recommended Settings

No recommendation.

Programmatic Use

No programmatic use is available.

Version History

Introduced in R2026b
