Solve Matrix Equation Using Forward Substitution
Solve a matrix equation using the Forward Substitution block.

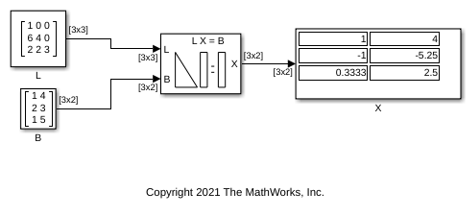

Open and run the model. The model solves the equation using the Forward Substitution block. The block accepts
and
matrices as inputs, and outputs the solution matrix
.
You can verify the solution by using the Matrix Multiply block to perform the multiplication , as shown in following model. The output matrix
in this model equals the input matrix
in the previous model.
See Also
Constant | Forward Substitution | Matrix Multiply (Simulink) | Display (Simulink)
