Compute the running maximum of a 3-by-2 matrix input,
dsp_examples_u, using the Maximum block.
Open the model.

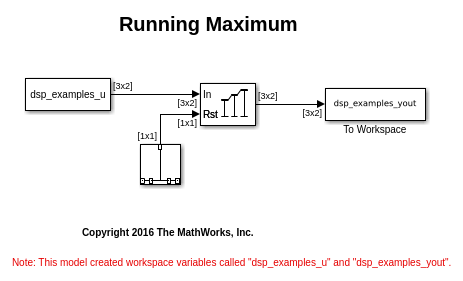

model = 'ex_runningmaximum_ref'; open_system(model)
The Input processing parameter is set to
Columns as channels (frame based). The block processes the input as a two-channel signal with a frame size of three. The running maximum is reset at t = 2 by an impulse to the block's Rst port.
Run the model.
Running mode, the block outputs the maximum value over each channel since the last reset. At t = 2, the reset event occurs. The maximum value in the second column changes to 6, even though 6 is less than 9, which was the maximum value since the previous reset event.
Close the model.
