# fdesign.nyquist

Nyquist filter specification

## Syntax

`d = fdesign.nyquist`

d = fdesign.nyquist(l, spec)

d = fdesign.nyquist(l,spec,specvalue1,specvalue2,...)

d = fdesign.nyquist(l,specvalue1,specvalue2)

d = fdesign.nyquist(...,fs)

d = fdesign.nyquist(...,magunits)

## Description

`d = fdesign.nyquist`

constructs
a Nyquist or L-band filter specification object `d`

,
applying default values for the properties `tw`

and `ast`

.
By default, the filter object designs a minimum-order half-band (L=2)
Nyquist filter.

Using `fdesign.nyquist`

along with `design`

method
generates a System object™, if the `'SystemObject'`

flag
in the `design`

method is set to `true`

.

`d = fdesign.nyquist(l, spec)`

constructs
object `d`

and sets its `Specification`

property
to * spec*. Use

`l`

to specify
the desired value for L. L = 2
designs a half-band FIR filter, L = 3
a third-band FIR filter, and so on. When you use a Nyquist filter
as an interpolator, l or L is the interpolation factor. The first
input argument must be l when you are not using the default syntax ```
d
= fdesign.nyquist
```

.Entries in the `spec`

represent various filter
response features, such as the filter order, that govern the filter
design. Valid entries for * spec* are shown
below. The entries are not case sensitive.

`tw`

,`ast`

(default option)`n`

,`tw`

`n`

`n`

,`ast`

where,

`ast`

— attenuation in the stop band in decibels (the default units).`n`

— filter order.`tw`

— width of the transition region between the pass and stop bands. Specified in normalized frequency units.

The filter design methods that apply to a Nyquist filter specification
object change depending on the `Specification`

option.
Use `designmethods`

to determine
which design method applies to an object and its specification option.
Different filter design methods also have options that you can specify.
Use `designopts`

with the design
method to see the available options. For example:

f=fdesign.nyquist(4,'N,TW'); designmethods(f)

`d = fdesign.nyquist(l,spec,specvalue1,specvalue2,...)`

constructs
an object `d`

and sets its specification to * spec*,
and the specification values to

`specvalue1`

, `specvalue2`

,
and so on at construction time.`d = fdesign.nyquist(l,specvalue1,specvalue2)`

constructs
an object `d`

with the values you provide in `l`

, `specvalue1,specvalue2`

as
the values for `l`

, `tw`

and `ast`

.

`d = fdesign.nyquist(...,fs)`

adds
the argument `fs`

, specified in Hz to define the
sampling frequency to use. In this case, all frequencies in the specifications
are in Hz as well.

`d = fdesign.nyquist(...,magunits)`

specifies
the units for any magnitude specification you provide in the input
arguments. `magunits`

can be one of

`linear`

— specify the magnitude in linear units`dB`

— specify the magnitude in dB (decibels)`squared`

— specify the magnitude in power units

When you omit the `magunits`

argument, `fdesign`

assumes
that all magnitudes are in decibels. Note that `fdesign`

stores
all magnitude specifications in decibels (converting to decibels when
necessary) regardless of how you specify the magnitudes.

### Limitations of the Nyquist fdesign Object

Using Nyquist filter specification objects with the `equiripple`

design method imposes a few limitations
on the resulting filter, caused by the `equiripple`

design
algorithm.

When you request a minimum-order design from

`equiripple`

with your Nyquist object, the design algorithm might not converge and can fail with a filter convergence error.When you specify the order of your desired filter, and use the

`equiripple`

design method, the design might not converge.Generally, the following specifications, alone or in combination with one another, can cause filter convergence problems with Nyquist objects and the

`equiripple`

design method.very high order

small transition width

very large stopband attenuation

Note that halfband filters (filters where band = 2) do not exhibit convergence problems.

When convergence issues arise, either in the cases mentioned
or in others, you might be able to design your filter with the `kaiserwin`

method.

In addition, if you use Nyquist objects to design decimators or interpolators (where the interpolation or decimation factor is not a prime number), using multistage filter designs might be your best approach.

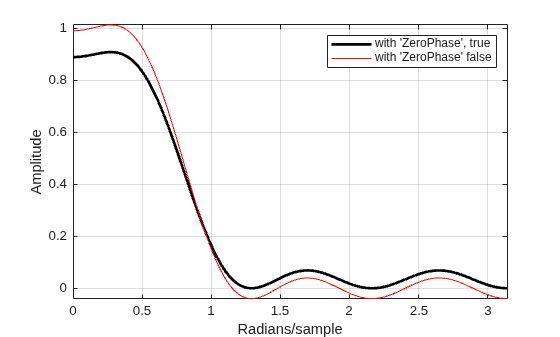

## Examples

## Version History

**Introduced in R2011a**
