This example shows how to use the cscvn
command from Curve Fitting Toolbox™ to construct cubic spline curves in two and three dimensions.
This example will show how to draw a smooth curve through a list of points, in the order in which they occur. First, we select some random points in the plane, and store them in a matrix, one point per column.

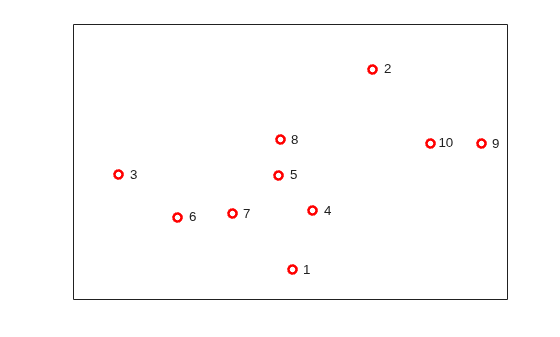

npts = 10; xy = [randn(1,npts); randn(1,npts)]; plot(xy(1,:),xy(2,:),'ro','LineWidth',2); text(xy(1,:), xy(2,:),[repmat(' ',npts,1), num2str((1:npts)')]) ax = gca; ax.XTick = []; ax.YTick = [];
Next, construct the curve using the cscvn
command and plot it using fnplt
.

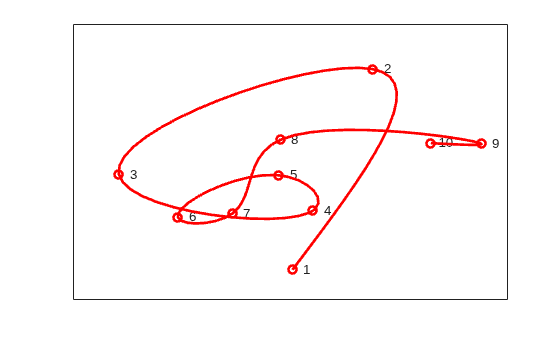

hold on fnplt(cscvn(xy),'r',2) hold off
You could also use the getcurve
command if you wanted to input the list of points interactively.
It's just as easy to create spline curves in three dimensions. This time, we'll do something less random. First, we generate the points.

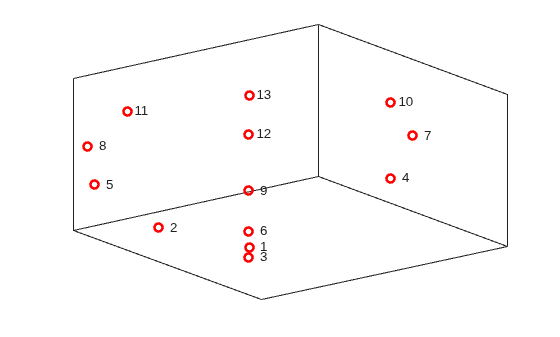

npts = 13; t = linspace(0,8*pi,npts); z = linspace(-1,1,npts); omz = sqrt(1-z.^2); xyz = [cos(t).*omz; sin(t).*omz; z]; plot3(xyz(1,:),xyz(2,:),xyz(3,:),'ro','LineWidth',2); text(xyz(1,:),xyz(2,:),xyz(3,:),[repmat(' ',npts,1), num2str((1:npts)')]) ax = gca; ax.XTick = []; ax.YTick = []; ax.ZTick = []; box on
Here is the 3D spline curve through these points provided by cscvn
. By appending the first point to the end of the list, we get a smooth closed curve.
hold on fnplt(cscvn(xyz(:,[1:end 1])),'r',2) hold off
