Frequency Offset Calibration with ADALM-PLUTO Radio in Simulink

This example uses:

Open Model

These two models show how to determine the relative frequency offset between two ADALM-PLUTO radios.

The transmitter sends a 12000 Hz sine wave with the Frequency Offset Calibration (Tx) with ADALM-PLUTO Radio model. The receiver receives the signal, calculates the frequency offset and displays the offset in the Frequency Offset Calibration (Rx) with ADALM-PLUTO Radio model.

This example deals with offset in the center frequency only. To compensate for offsets in both the center frequency and the baseband sample rate, see the Frequency Correction for ADALM-PLUTO Radio example.

Overview

These two models perform an FFT-based frequency offset calculation at complex baseband. The receiver model provides the following information:

  • The quantitative value of the frequency offset

  • A graphical view of the spur-free dynamic range of the receiver

  • A graphical view of the qualitative SNR level of the received signal

Structure of the Example

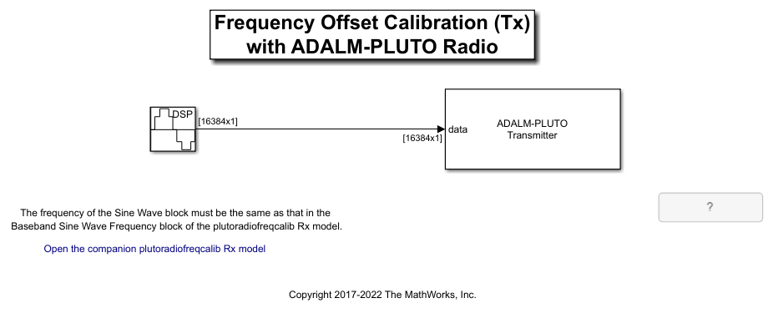

The following figure shows the transmitter model:

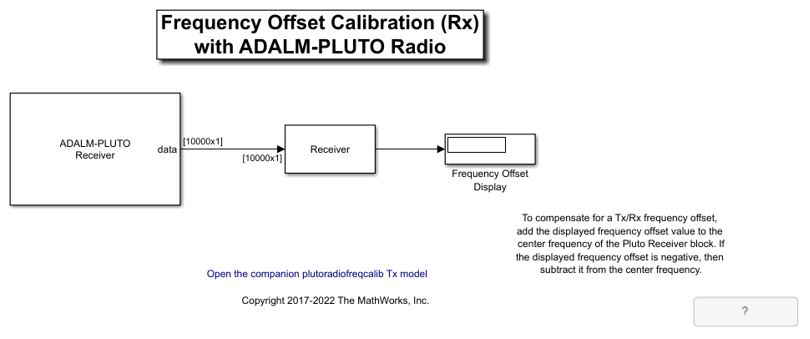

The following figure shows the receiver model:

The following figure shows the detailed structure of the Receiver subsystem:

  • The Find Peak Frequency block - uses an FFT to find the frequency with the maximum power in the received signal.

  • The Spectrum Analyzer block - computes and displays the power spectral density of the received signal.

Receiver

Find Peak Frequency

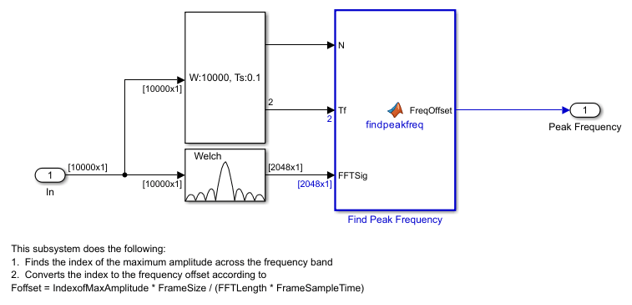

The Find Peak Frequency subsystem finds the frequency with the maximum power in the received signal, which equals the frequency offset plus 12000 Hz. The following diagram shows the subsystem. In this subsystem, the Periodogram block returns the PSD estimate of the received signal. The Probe block finds the frame size and the frame sample time. With this information, this subsystem finds the index of the maximum amplitude across the frequency band and converts the index to the frequency value according to

Foffset = IndexofMaxAmplitude * FrameSize / (FFTLength * FrameSampleTime)

The MATLAB function findpeakfreq.m performs this conversion.

Spectrum Analyzer

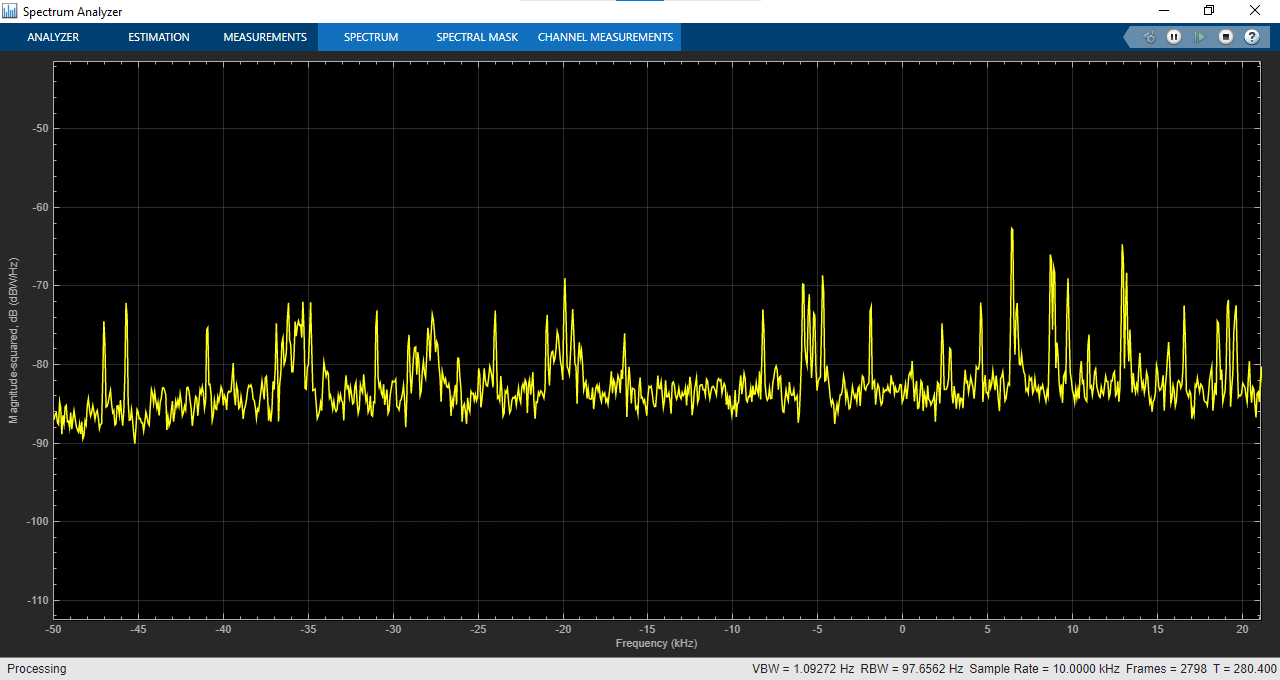

The following figure shows the output of the Spectrum Analyzer on a frequency range of -50 kHz to 50 kHz. In the case shown below, the frequency with the maximum power of the received signal is about 7 kHz, and the spur-free dynamic range of the receiver is about 34 dB.

Running the Example

Connect two ADALM-PLUTO Radios to the computer. Run the Frequency Offset Calibration (Tx) with ADALM-PLUTO Radio model, and then open the Frequency Offset Calibration (Rx) with ADALM-PLUTO Radio model.

To run the receiver model, set the Center frequency parameter of the ADALM-PLUTO Radio Receiver block to the same value as the center frequency setting of the Frequency Offset Calibration (Tx) with ADALM-PLUTO Radio model. Then run the model. The frequency offset is calculated and displayed while the simulation is running.

To compensate for a transmitter/receiver frequency offset, add the displayed frequency offset value to the center frequency of the ADALM-PLUTO Radio Receiver block. If the displayed frequency offset is negative, then subtract it from the center frequency. The spectrum displayed by the Spectrum Analyzer block should then have its maximum at 12000 Hz.
