Metasurface Antenna Modeling

This example shows how to design, model, and analyze a metasurface antenna based on reference [1]. Metasurface antennas take advantage of the periodic boundary of each radiation unit cell to group the radiation unit in a more compact space.

You construct an unit radiation element with Antenna Toolbox™ objects and functions. You also use infiniteArray and rectangularArray objects to construct the large antenna array, on which you perform pattern and current analysis at the designed frequency.

Construct Unit Radiator

The unit radiator in [1] is a cross I-beam structure with an optimized probe feed in one arm. The unit cell has a dimension of 3 cm and gap of 0.5 mm. Specify the geometry of the antenna.

length = 14.75*1e-3;
width = 3*1e-3;
s = 0.25*1e-3;
thickness = 1.5*1e-3;
viaDia = 0.5*1e-3*2;
feedWidth = viaDia/2;
gndLength = length + 2*s;
gndWidth = gndLength;

Use the customAntennaGeometry object to construct the top cross I-beam radiator and place it into a reflector to form the unit radiator structure. In this simplified geometry, you remove the substrate from the design. Removing the substrate increases the radiation frequency to 9.14 GHz, which is higher than the value in [1].

s1 = antenna.Rectangle(Length=length, Width=width);
s2 = antenna.Rectangle(Length=width, Width=length);
s3 = antenna.Rectangle(Length=feedWidth, Width=feedWidth);
[~] = translate(s3,[-5*1e-3+feedWidth/2 0 0]);

pr1 = getShapeVertices(s1);
pr2 = getShapeVertices(s2);
pr3 = getShapeVertices(s3);

radiator = customAntennaGeometry(Boundary={pr1,pr2,pr3}, Operation="P1+P2+P3");
radiator.FeedLocation = [-5*1e-3 0 0];
radiator.FeedWidth = feedWidth;

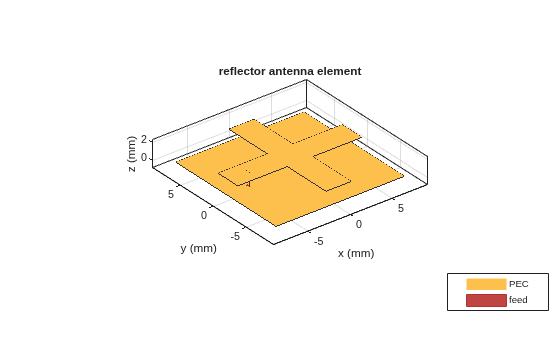

ant = reflector(Exciter=radiator, GroundPlaneLength=gndLength, GroundPlaneWidth=gndWidth, ...
    Spacing=thickness, EnableProbeFeed=true);

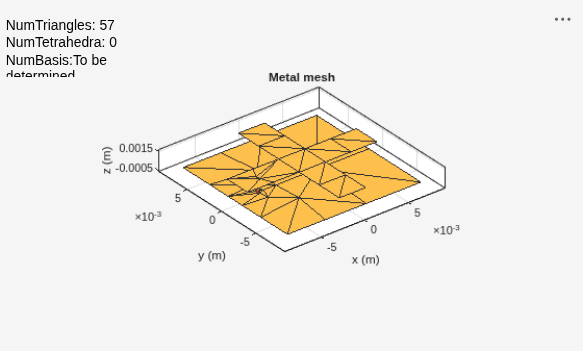

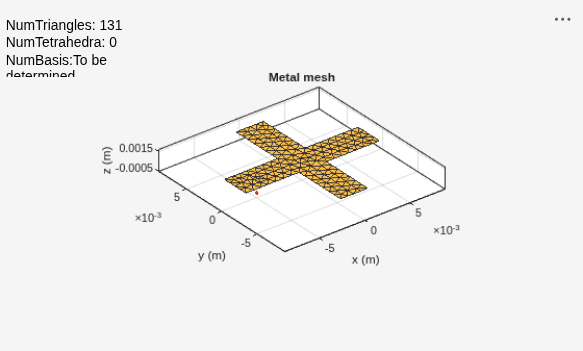

Mesh and Analyze Unit Structure

Generate a mesh with a maximum edge length of 0.1 m.

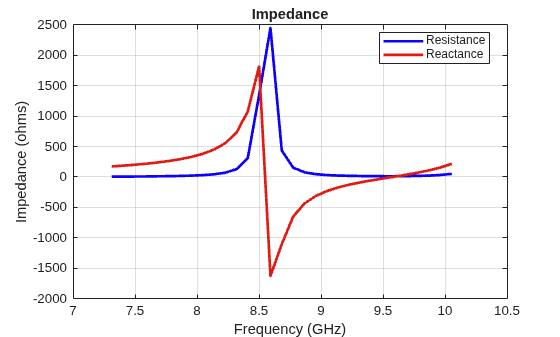

Calculate the impedance as a function of frequency.

freq = 9.14e9;

Implement Periodic Boundary and Analyze Antenna

To include the periodic boundary effect on the unit radiator, specify the radiator as the element in the infiniteArray object. The object constructs an infinite antenna array with the designed radiator. Numerically, the object uses a Green function with a method of moments (MOM) and models the coupling effect between adjacent unit radiators.

infArray = infiniteArray(Element=ant);


Analyze Finite Array

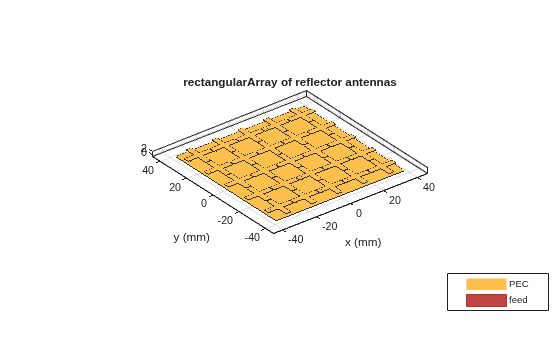

To analyze the coupling effect on a finite array, construct a 5-by-5 element rectangular array with the designed radiator.

array = rectangularArray(Element=ant);
array.Size = [5 5];
array.RowSpacing = gndLength;
array.ColumnSpacing = gndWidth;

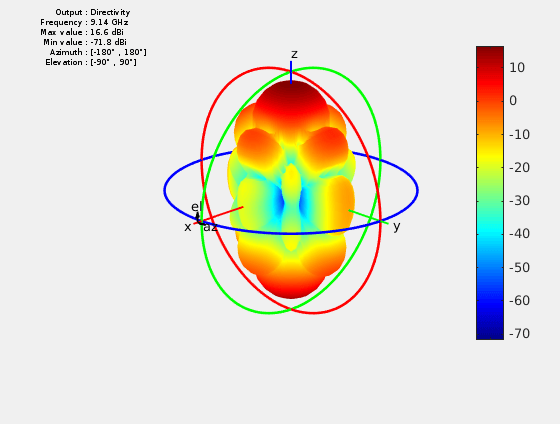

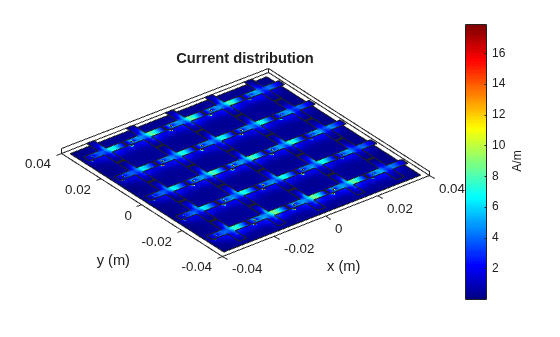

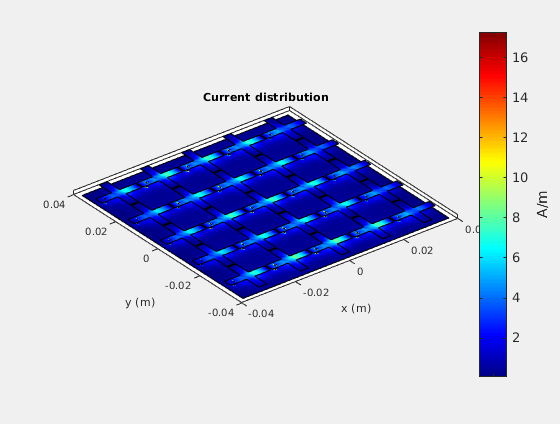

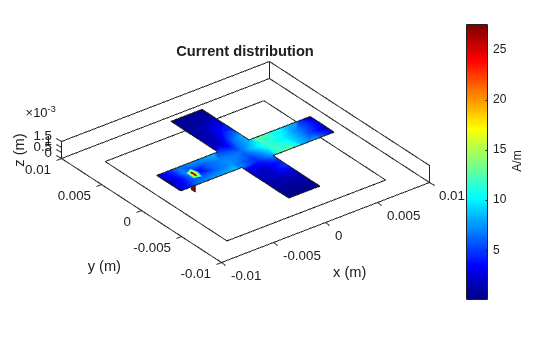

Plot the pattern and current of the array as functions of the frequency.



Assign Substrate to Infinite Array

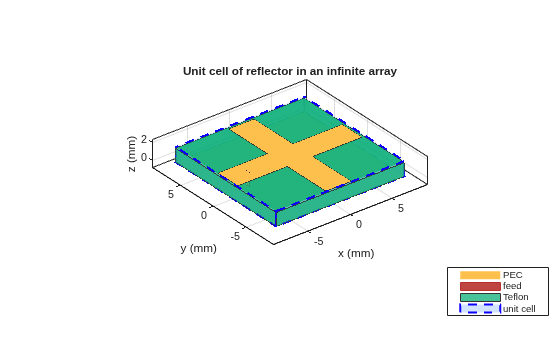

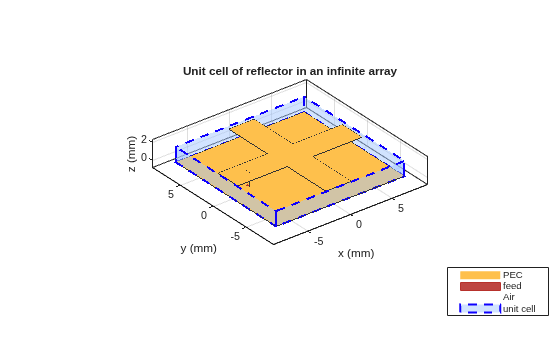

Specify Teflon™ as the substrate of the unit cell element and visualize the geometry of the infinite array.

infArray.Element.Substrate = dielectric("Teflon");

Mesh Unit Cell

Mesh the unit cell, specifying a maximum edge length of lambda/40, where lambda is the free-space wavelength at 9.14 GHz. The software captures the dielectric effect in the infinite array analysis in the equivalent periodic Green's function, so use the MOM over the top layer metal mesh only.

lambda = 3e8/9.14e9;

Compute Pattern

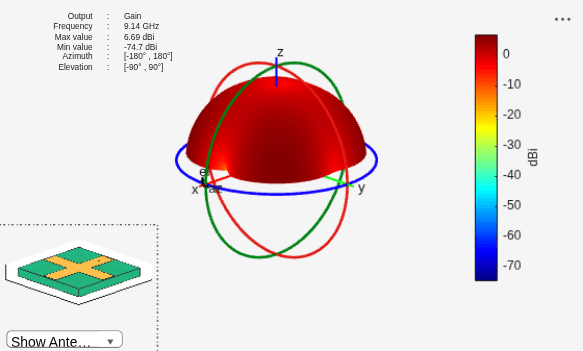

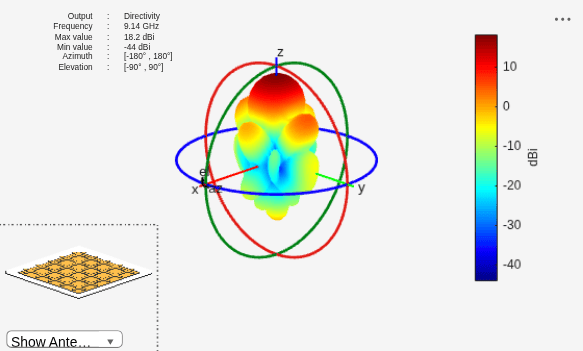

With the meshed geometry, perform the full-wave radiation pattern analysis at 9.14 GHz.



The current and pattern modeling result obtained from the finite array are qualitatively similar to the results reported in [1]. For other types of metasurface geometry, you can construct the unit cell by using an antenna catalog element, as the Infinite Array of Microstrip Patch Antenna on Teflon Substrate example shows, or using a PCB stack.


[1] Badawe, Mohamed El, Thamer S. Almoneef, and Omar M. Ramahi. “A True Metasurface Antenna.” Scientific Reports 6, no. 1 (January 13, 2016): 19268.
